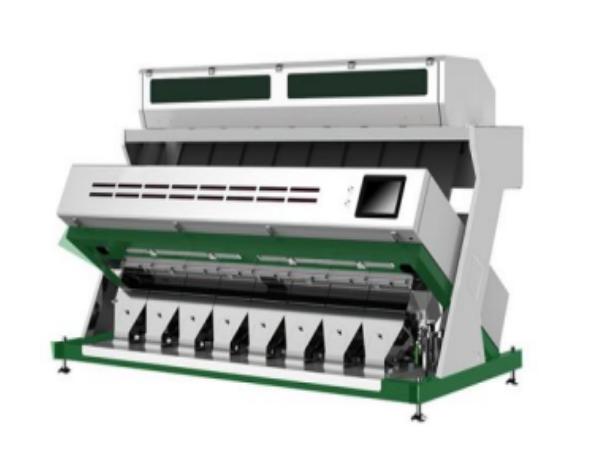

Rice sorting machine

Finished product: Rice
Production capacity: The processing capacity of different grains is different, which can be seen in the following technical parameters
Core equipment: Rice sorting machine
Application: Subject to different raw materials and different impurities percentage in raw materials.

DESCRIPTION

  C Series-Multipurpose Color sorter, Aply for many kinds of beans, sesame and other grains. 99.99% Sorting Accuracy.

FEATURE

  1. LED:Split LED design, Germany OSRAM;high brightness, life-time up to 100,000 hours, and equipped with intelligent control dimming technology;

  2. Sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million pixels, line frequency ≥ 10K, the minimum area of different colors can be up to 0.0004 square millimeters;

  3. Lens: Japanese NIKON, optical industry customized lens, with 150 line pairs of ultra-high resolution, low distortion:<0.2%, low color difference: <0.1 pixel, better imaging performance;

  4. Processor: ALTERA programmable logic device processor: data processing speed>5500k bits; data transmission speed> 210mhz; the system data acquisition and processing speed >3.125 Gbps, is extremely high;

  5. Solenoid valve: customized solenoid valve for color sorter; All imported alloy materials, MATRIX technology introduced in Italy, shutdown time;

  6. Operation interface: 15-inch HD industrial computer, Intel CPU, Windows operating system, 24-bit true color display, more realistic image display;

  7. Intelligent operation interface, visual analysis of images, one-click analysis of the proportion of impurities to be removed and transfer of sorting parameters, easier operation;

  8. Support remote control for mobile phone apps and monitoring equipment operation, convenient and fast;

  9. Support Internet remote control, system upgrade function, HD image acquisition, visual system adaptive correction technology, self-learning statistical analysis technology, and one-key automatic parameter adjustment technology;

  Frontward and backward vibrator adjustable platform, easy for multiple products.

Color sorter FINISHED PRODUCTS

WinTone Machinery is a manufacturer specializing in the manufacture of Rice sorting machine. The Rice sorting machine produced by our company are of stable quality, with few failures and simple operation. If you want to inquire about the price of Rice sorting machine, you are welcome to contact us.

MODEL CHANNEL EJECTORS DIMENSION
(mm)
WEIGHT
(kg)
POWER
(kw)
SESAME PEANUTS GREEN MUNG BEAN COFFEE BEAN CHICKPEA WHEAT CORN UNIT
C1 1/0 64 975*1550*1400 240 0.8 250-500 600-900 500-800 500-800 700-1000 800-1500 800-1500 Throughput of
different grains
(KG/H)
C2 2/0 128 1240*1705*1828 500 1.1 500-1000 1200-1800 1000-1600 1000-1600 1400-2000 1600-3000 1600-3000
C3 2/1 192 1555*1707*1828 800 1.4 500-1000 1200-1800 1000-1600 1000-1600 1400-2000 1600-3000 1600-3000
C4 3/1 256 1869*1707*1828 1000 1.8 750-1500 1800-2700 1500-2400 1500-2400 2100-3000 2400-4500 2400-4500
C5 4/1 320 2184*1707*1828 1100 2.2 1000-2000 2400-3600 2000-3200 2000-3200 2800-4000 3200-6000 3200-6000
C6 4/2 384 2500*1707*1828 1350 2.8 1000-2000 2400-3600 2000-3200 2000-3200 2800-4000 3200-6000 3200-6000
C7 5/2 448 2814*1707*1828 1350 3.2 1250-2500 3000-4500 2500-4000 2500-4000 3500-5000 4000-7500 4000-7500
C8 6/2 512 3129*1707*1828 1500 3.7 1500-3000 3600-5400 3000-4800 3000-4800 4200-6000 4800-9000 4800-9000
C10 7/2/1 640 3759*1710*1828 1750 4.2 1750-3500 4200-6300 3500-5600 3500-5600 4900-7000 5600-10500 5600-10500
C12 8/3/1 768 4389*1710*1828 1900 4.8 2000-4000 4800-7200 4000-6400 4000-6400 5600-8000 6400-12000 6400-12000
 Remarks: The above data   is based on the raw materials with the impurity content rate is 3%-1% after   cleaning.
