NF Combined Flour Milling Machine

Finished product: Grain Flour
Production capacity: 200-800kg/h as required
Core equipment: Flour mill for wheat, rice, maize, millet sorghum, beans. Cereals Grinding
Application: 40-120 mesh milling of wheat, corn, beans, sorghum, buckwheat, millet and other grain

DESCRIPTION

  We have different types of NF Combined Flour Milling Machine, which consistently and safely grind wheat, corn, rye, barley,millet, sorghum, spelt and other grains. We offer a wide range of roller mills and optional functions to match the milling solutions you need.

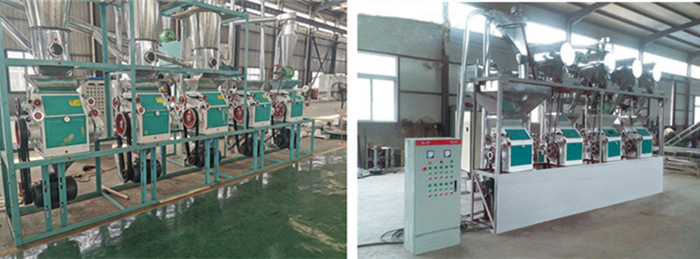

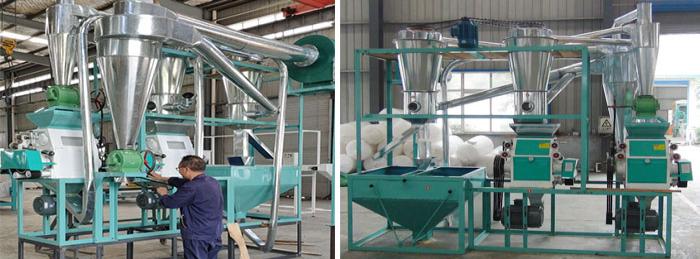

Our NF series Combined Flour Milling Machine mainly used in small size grain flour processing plants. It grinds grains into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.

We Can Supply

Working principle

  1. The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder.

  2. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake.

  3. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated.

  4. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.



FEATURE

  • High automation degree

    High automation degree, reasonable structure, stable running.

  • Low energy consumption

    Low energy consumption, high efficiency, Low production cost, good benefit, low noise.

  • Safe and sanitary

    Safe and sanitary, Energy conservation and environmental protection.

  • Easy installation

    Easy installation and convenient maintenance.

FINISHED PRODUCTS

NF Double Cereals Flour Milling Machine FINISHED PRODUCTS

WinTone Machinery is a manufacturer specializing in the manufacture of NF Combined Flour Milling Machine. The NF Combined Flour Milling Machine produced by our company are of stable quality, with few failures and simple operation. If you want to inquire about the price of NF Combined Flour Milling Machine, you are welcome to contact us.

Model Yield (t/h) Power (kw) Rated voltage(v) Spindle Speed(r/min) Outline Size(mm)
NF-2240×2 0.5 20.5 380 1042 4000×1500×3100
NF-2250×2 0.8 28 380 1042 4000×1800×3400
NF-2250×4 2 60 380 1042 4638×2395×2514
